2023 XCMG XGL300-18S 18t لوفنگ ٹاور کرین برائے فروخت

ایف او بی قیمت: / یونٹ

مصنوعات کی تفصیل


ماڈل نمبر:XGL300-18S

زیادہ سے زیادہ ورکنگ رینج اور ٹپ لوڈ (m/t):60/3.2(m/t)

زیادہ سے زیادہ بوجھ اٹھانا:18t/15.1m

مستول سیکشن کا سائز:2x2x3m

حالت:استعمال کیا جاتا ہے

سال:2023

لوڈ کی صلاحیت:18t

پی ڈی ایف ڈاؤن لوڈ

شیئرز

یویانگ

ہم اپنے صارفین کو کارکردگی کو بہتر بنانے اور اخراجات کو کم کرنے میں مدد کرنے کے لیے اعلیٰ معیار کا، قابل اعتماد استعمال شدہ ٹاور کرین کا سامان فراہم کرتے ہیں۔

2023 XCMG XGL300-18S 18t لوفنگ ٹاور کرین برائے فروخت



XCMG used luffing tower crane XGL300-18S is being dismantled down, only did a site project, the performance is very excellent, the machine is very new.Yueyang machinery first time to take it down, do our stock machine, professional service to our customers to provide luffing tower crane first choice.

XGL300-18S crane technical Features

Project Unit XGL300A-18S
Boom Length/Load at Boom End m/t 60/3.2
Rated Load Moment t·m 300
Maximum Lifting Capacity t 18
Maximum Independent Height m 46.1
Maximum Attached Height m 199.1
Hoisting Rope Capacity m 805
Maximum Hoisting Speed منٹ/منٹ 100
Luffing Time (15°~85°) ≤2.5 min
Slewing Speed r/min 0~0.7
Hoisting Power کلو واٹ 67
Luffing Power کلو واٹ 45
Slewing Power کلو واٹ 2×7.5

XGL300-18S tower crane Introduction

  • The industry’s first high-strength cold-bent steel application, lighter boom, better lifting performance than other manufacturers in the same industry, and the lightweight level is at the leading level in the industry;
  • The whole machine is equipped with 8.8-10.9 grade Dacromet high-strength bolts, which are higher in strength, stronger in rust resistance, and longer in service life;
  • The structural parts adopt powder electrostatic spraying technology, automotive-grade coating level, no fading in 2 years, no rust in 5 years;
  • The whole machine platform is made of aluminum alloy and will never rust;
  • For the first time, the design concept of the cab in the automotive field was introduced into the tower crane industry, and the electrophoresis treatment process was adopted to achieve a ten-year rust-free cab;
  • The air-conditioning outdoor unit is built-in, and the overall safety Installation and transportation can avoid damage to the external machine and reduce the risk of outdoor installation and maintenance operations;
  • The modular hoisting technology of the whole machine greatly improves the installation and disassembly efficiency by 20-30%;
  • The full frequency conversion control method realizes the flexible operation of each mechanism without impact, and is green, efficient and intelligent;
  • The industry-leading load-following speed function and worm speed control technology meet the needs of prefabricated buildings;
  • For supporting parts, relying on national quality inspection institutions, the three-level coverage of product testing range is achieved, and batch professional testing of key parts such as raw materials, high-strength bolts, and pins is achieved;
  • All supporting parts of the whole machine are from the top two supporting manufacturers in the industry.

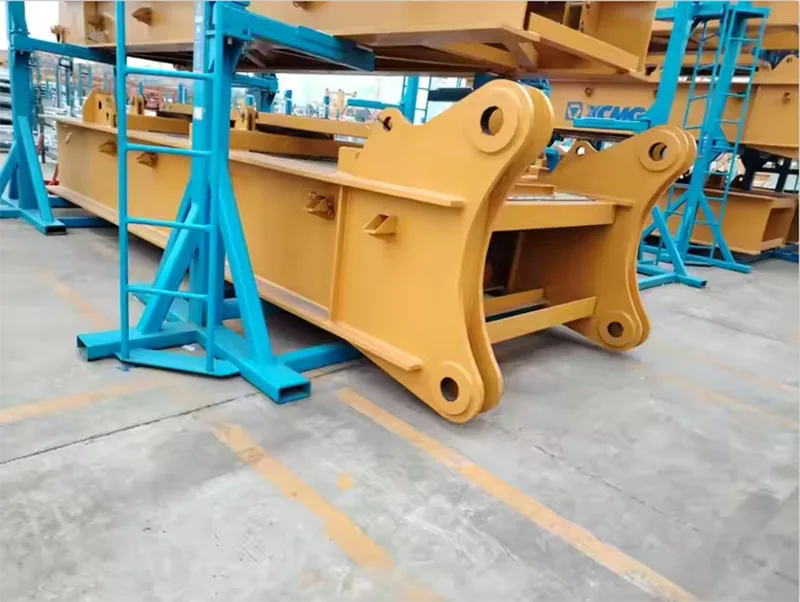

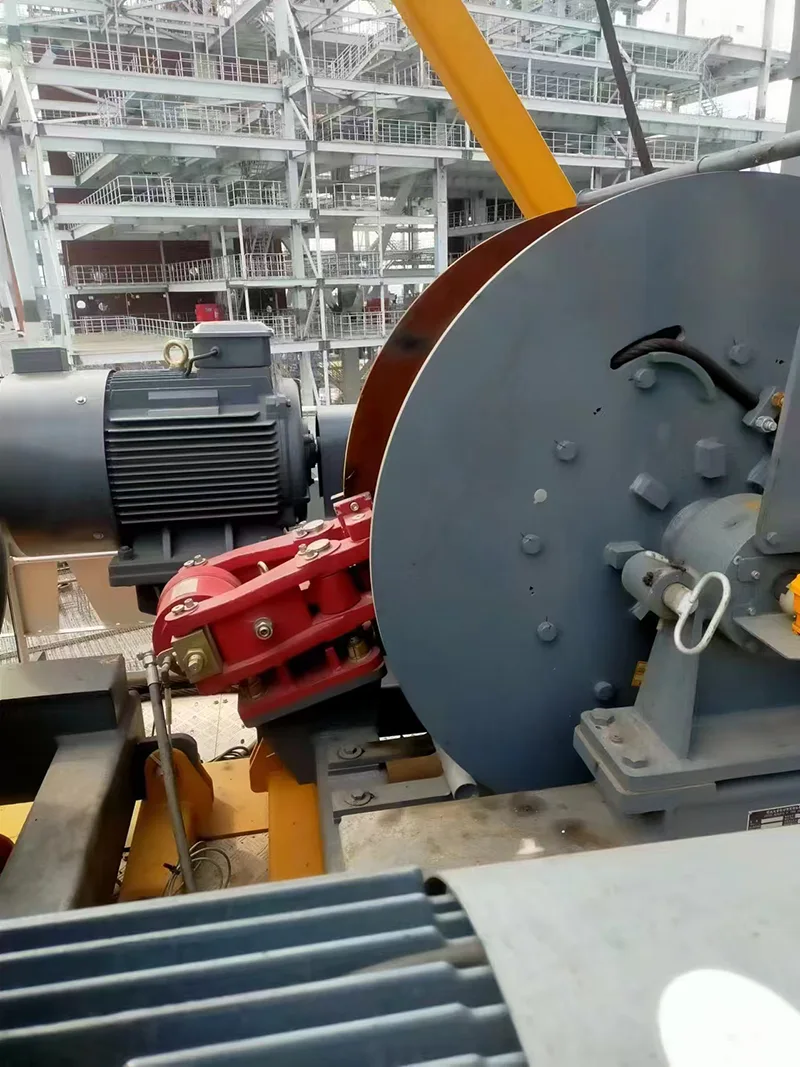

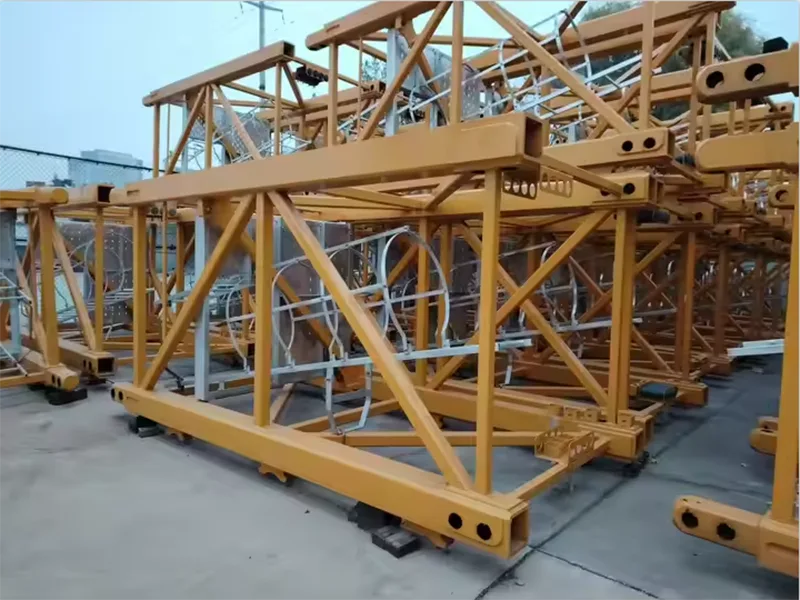

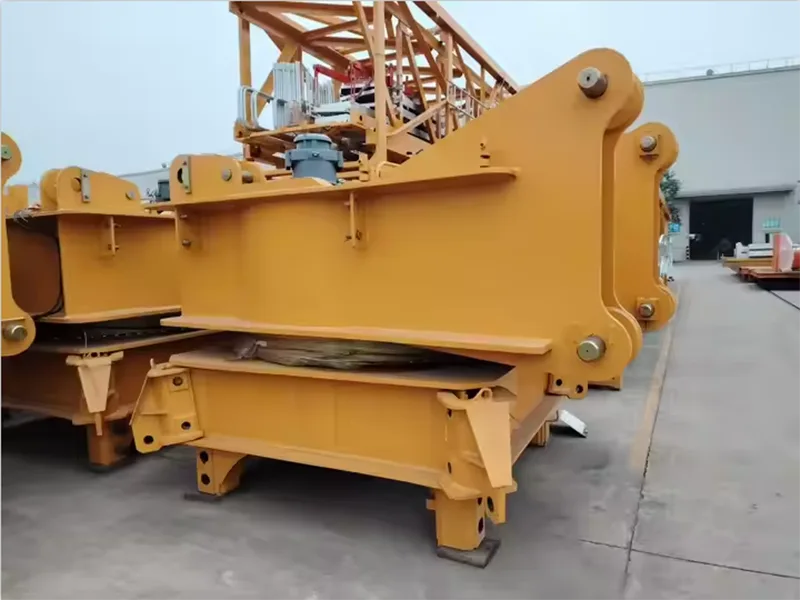

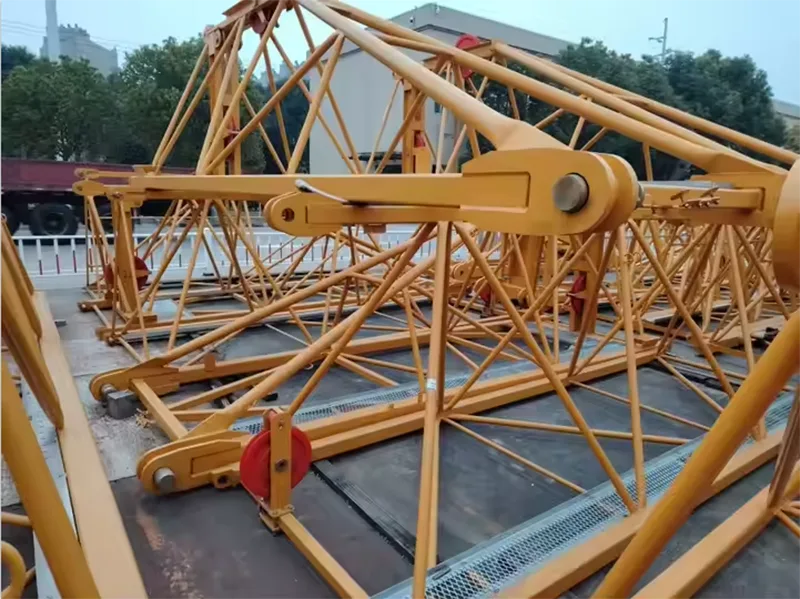

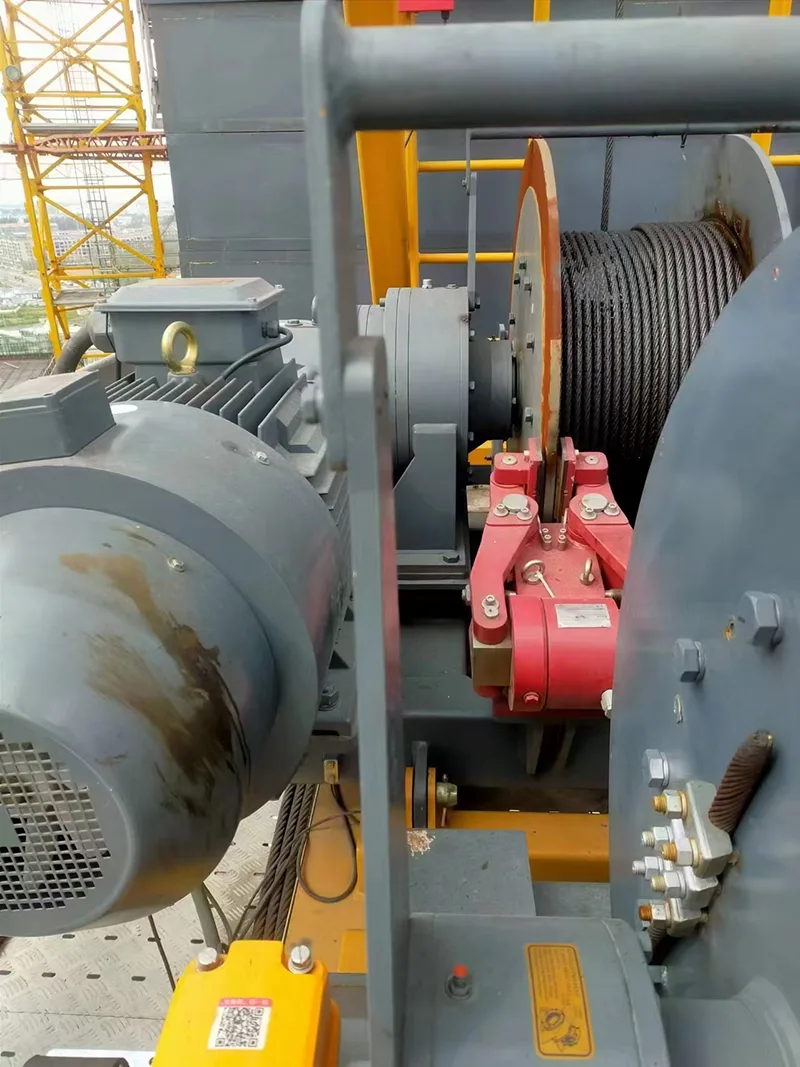

2023 XCMG XGL300-18S 18t Luffing tower crane for sale - Photo12023 XCMG XGL300-18S 18t Luffing tower crane for sale - Photo2  2023 XCMG XGL300-18S 18t Luffing tower crane for sale - Photo3



"فاسٹ ٹریک"

ٹاور کرین برانڈز

زوملیون ٹاور کرین

پوٹین ٹاور کرین

یونگ مونگ ٹاور کرین

ایکس سی ایم جی ٹاور کرین

DAHAN ٹاور کرین

ٹاور کرین کی صلاحیت

6t ٹاور کرین

8t ٹاور کرین

10t ٹاور کرین

12t ٹاور کرین

16t ٹاور کرین

20t ٹاور کرین

25t ٹاور کرین

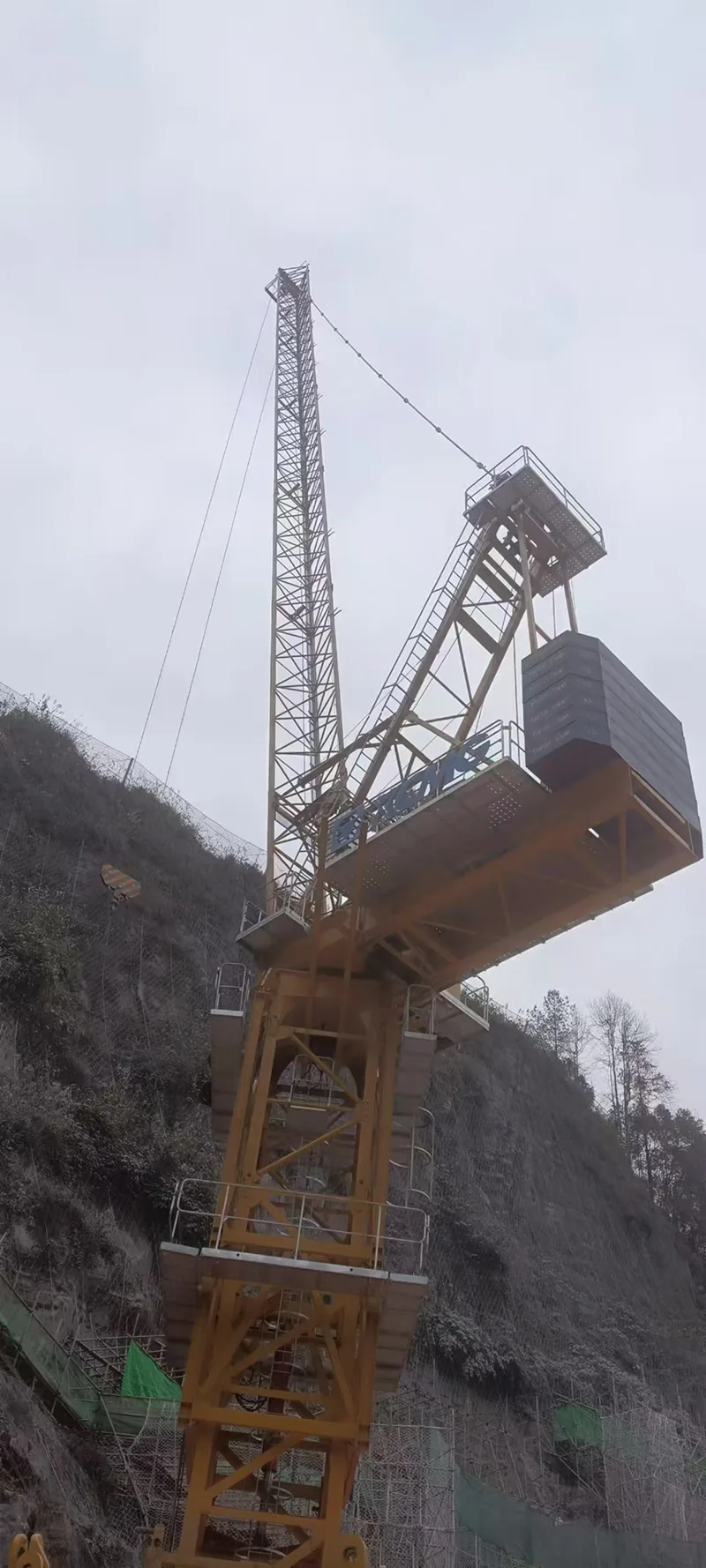

2023 XCMG XGL300-18S 18t Luffing tower crane for sale - Photo4
